Atlas Edge AI Server Powered by NVIDIA IGX Thor™
Industrial Edge

Atlas Edge AI Server Powered by NVIDIA IGX Thor™

  • Powered by NVIDIA IGX Thor™ with 2070 TFLOPS (FP4-Sparse) of built-in compute, expandable up to 5581 TFLOPS (FP4-Sparse) with an optional NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition ​
  • Powered by NVIDIA Blackwell GPU architecture, delivering exceptional performance in generative reasoning and multimodal sensor processing​
  • First rack-mountable, safety-capable infrastructure, designed for the next generation of industrial, robotics, medical, and security edge applications​

#Inside-Out Functional Safety & Outside-In Proactive AI Safety
#Scalable Edge AI Infrastructure
#10 Years of NVIDIA Enterprise Support

Description /

Edge AI Atlas Series Application Scenario

An integrated computing framework driving the future of real-world AI



Edge AI Atlas Series



Physical AI Safety

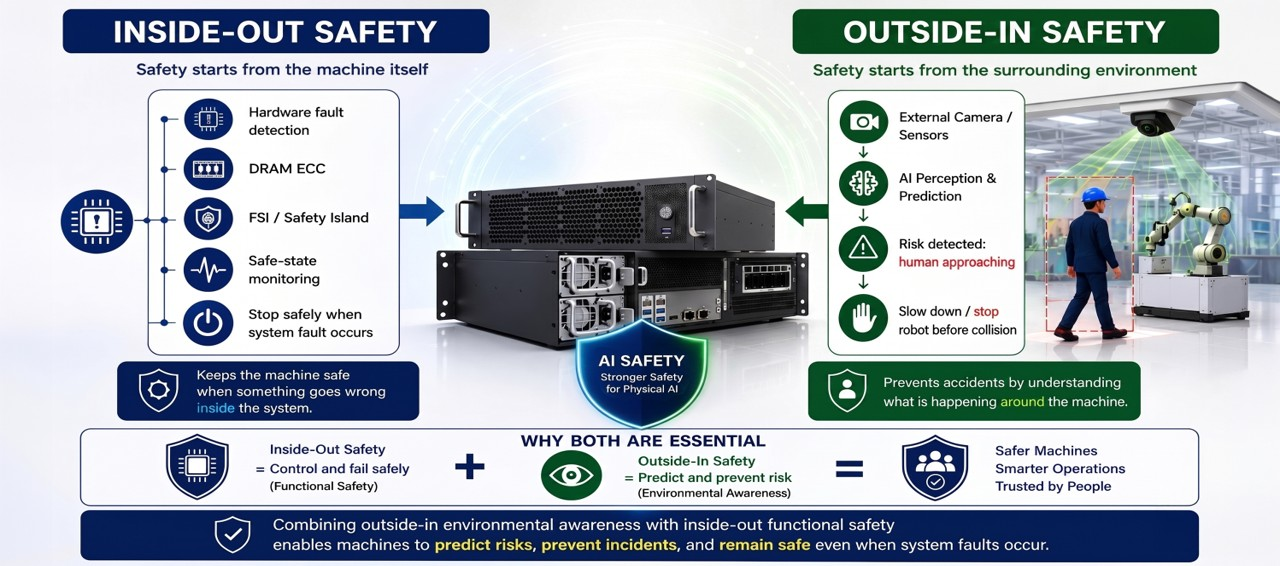

Proactive Safety in Smart Manufacturing : Inside-Out and Outside-In Safety

Inside-Out and Outside-In Safety

In a smart factory, Cobots powered by Atlas T7 can safely work alongside people by combining inside-out and outside-in safety. The robotic arm is designed to stop or halt the machine's actions if it comes into contact with a person or object, while an external infrastructure sensors provide an additional outside-in perspective to proactively identify approaching personnel or potential hazards. During operation, the system can detect potential safety risks and trigger an appropriate response, such as slowing down or pausing the robot, to help prevent unsafe interactions.

Specification /



Atlas Edge AI Server

GPU

Integrated GPU :
2560-core NVIDIA Blackwell architecture GPU with fifth-gen Tensor Cores Multi-Instance GPU with 10 TPCs

Optional GPU :

  • NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, NVIDIA Blackwell architecture, 96 GB GDDR7 with ECC

  • NVIDIA RTX PRO™ 5000 Blackwell, NVIDIA Blackwell architecture, 48 or 72 GB GDDR7 with ECC, 14,080-core NVIDIA Blackwell architecture GPU with fifth-gen Tensor Cores

CPU

14-core Arm® Neoverse®-V3AE 64-bit CPU 64 KB I-cache, 64 KB dCache 1 MB L2 cache per core 16 MB Shared System L3 Cache

AI PERFORMANCE

2070 ~ 5581 TFLOPS (FP4-Sparse)

STORAGE

1TB SSD

RAM

128GB 256-bit LPDDR5X

Dimension

2U form factor

I/O

2x Gen5 PCIe (x8, x16)
1x USB3.2 Gen2 Type C
4x USB3.2 gen2 Type-A
1x FSI CAN
2x USB header
4x COM Ports
1x LPT
1x TPM
2x CAN (CAN, 1x sMCU CAN)
1x GPIO

DISPLAY INTERFACE

1x VESA DisplayPort 1.4a

ETHERNET

2x RJ45 (1GbE each)
2x QSFP112 (200GbE each)
Supports NVIDIA ConnectX®-7

Power Supply

1000 W

For detailed product information, please fill out the form on our Contact Us page.
