Industrial Edge

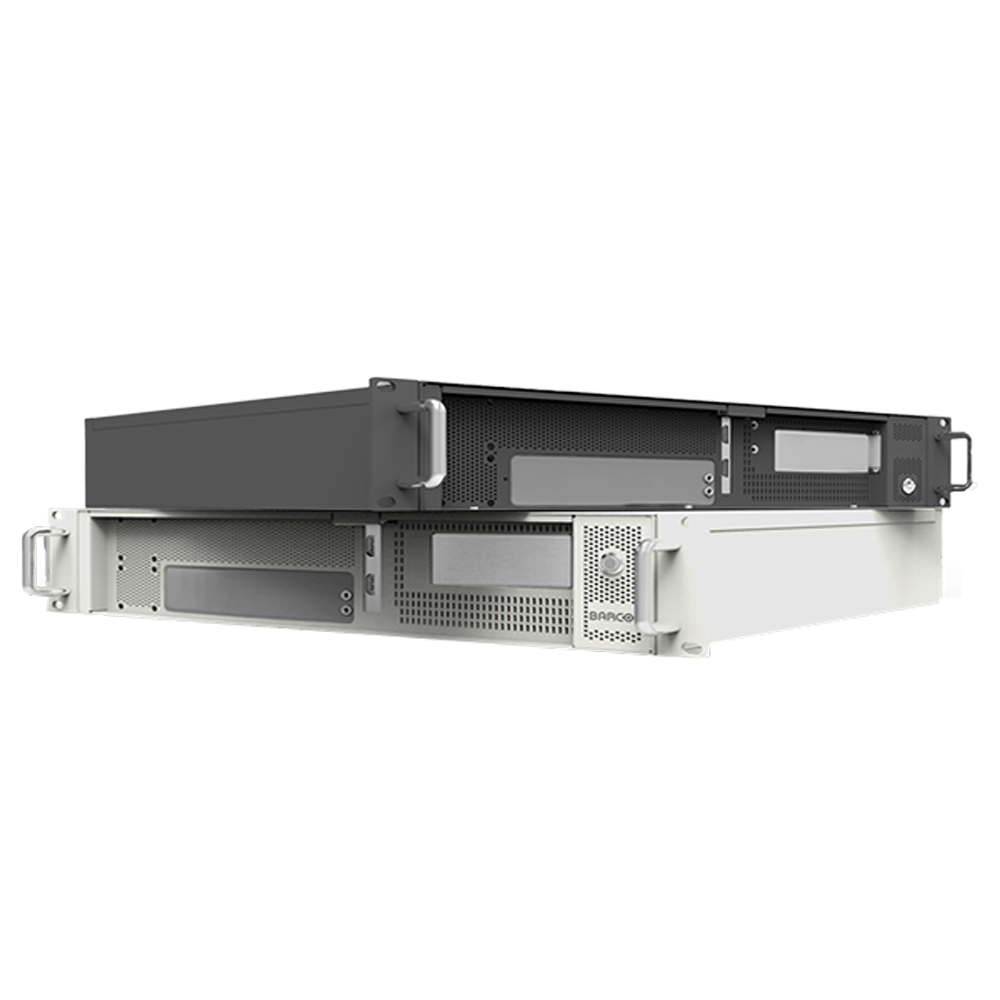

IGX Orin series Powered by NVIDIA IGX Orin™
Industrial Edge
IGX Orin series Powered by NVIDIA IGX Orin™
Features :
  • Deliver high-performance AI computing with NVIDIA OrinTM, offering up to 1705 TOPS with optional RTX 6000 Ada GPU
  • Ensure industrial-grade reliability and long-term support for safety-critical applications that combine enterprise level hardware and software
  • Provide scalability and security with enterprise-grade protection and industrial automation
  • Full-stack platform for Enterprise Edge AI, built to optimize industrial and medical applications
  • Enable seamless integration with NVIDIA AI Enterprise and IGX Software Stack
IGX Orin series Powered by NVIDIA IGX Orin™ Specification Table
NVIDIA IGX Orin™
GPU Integrated GPU :
NVIDIA Ampere architecture,
2048 NVIDIA® CUDA® cores, 64 Tensor Cores;

Optional GPU :
  • NVIDIA RTX6000 Ada,
  • NVIDIA Ampere architecture,
  • 48 GB GDDR6 Memory,
  • 10752 NVIDIA® CUDA® cores,
  • 336 Tensor Cores
CPU 12-core Arm® Cortex®-A78AE
v8.2 64-bit CPU 3MB L2 + 6MB L3
AI PERFORMANCE 275 TOPS, expandable to 1705 TOPS
STORAGE 1 TB SSD
RAM 64 GB LPDDR6
Dimension 2U AI Edge Formfactor
I/O 4 x USB3.2 Type-A,
1 x USB3.2 Type-C
1 x HDMI in (There is no display output from the HDMI port)
1 x DisplayPort output,
2 x 100 GbE QSFP28
2 x 1GbE RJ45
2 x 3.5mm audio jack (Line-out x 1, MIC x 1)
EXPANSION SLOTS 1 x PCIe Gen5 single width slots(x 8 connected)
1 x PCIe Gen5 double width slot (x16 connected)
- Yuan SC400 N2-L HDMI (included)
- Optional RTX 6000 Ada
DISPLAY INTERFACE 4 x DP (from Optional RTX6000 Ada)
ETHERNET 2 x 100Gb ports.
2 x RJ45 for 10 / 100 / 1,000 Mbps Ethernet DHCP Client
Power Supply 860W ATX
For detailed product information, please fill out the form on our Contact Us page
