- Powered by NVIDIA IGX Thor™ with 2070 TFLOPS (FP4-Sparse) of built-in compute, expandable up to 5581 TFLOPS (FP4-Sparse) with an optional NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition
- Powered by NVIDIA Blackwell GPU architecture, delivering exceptional performance in generative reasoning and multimodal sensor processing
- First rack-mountable, safety-capable infrastructure, designed for the next generation of industrial, robotics, medical, and security edge applications
#Inside-Out Functional Safety & Outside-In Proactive AI Safety
#Scalable Edge AI Infrastructure
#10 Years of NVIDIA Enterprise Support
Edge AI Atlas Series Application ScenarioAn integrated computing framework driving the future of real-world AI |
 |

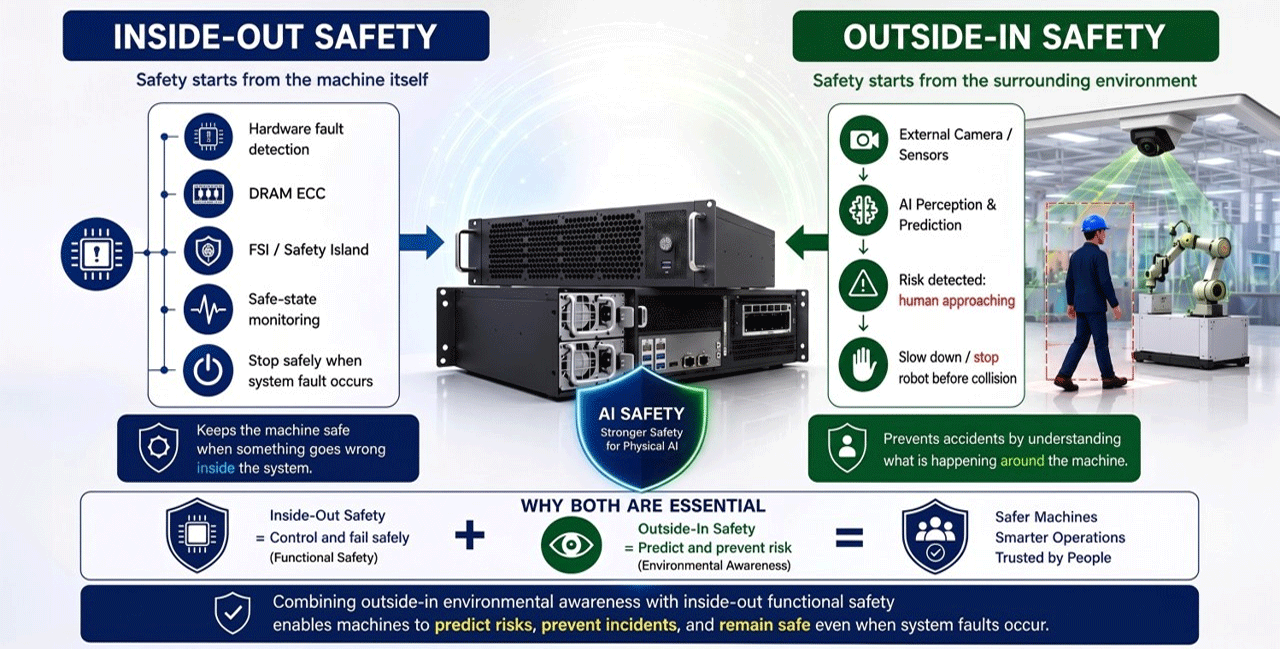

Physical AI SafetyProactive Safety in Smart Manufacturing : Inside-Out and Outside-In Safety
In a smart factory, Cobots powered by Atlas T7 can safely work alongside people by combining inside-out and outside-in safety. The robotic arm is designed to stop or halt the machine's actions if it comes into contact with a person or object, while an external infrastructure sensors provide an additional outside-in perspective to proactively identify approaching personnel or potential hazards. During operation, the system can detect potential safety risks and trigger an appropriate response, such as slowing down or pausing the robot, to help prevent unsafe interactions. |

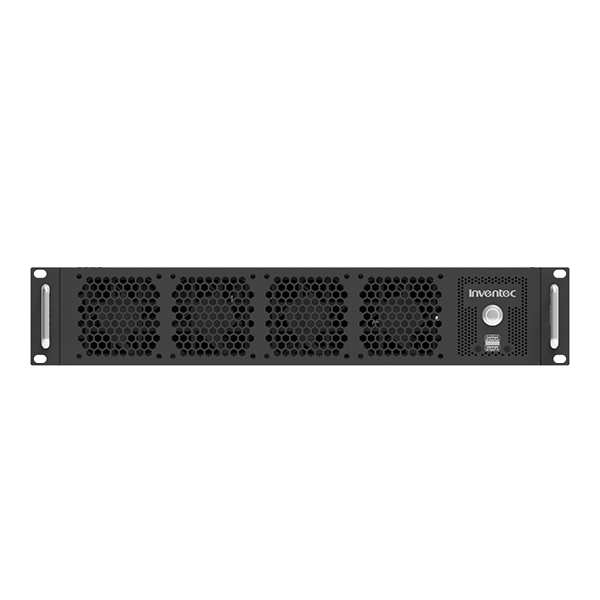

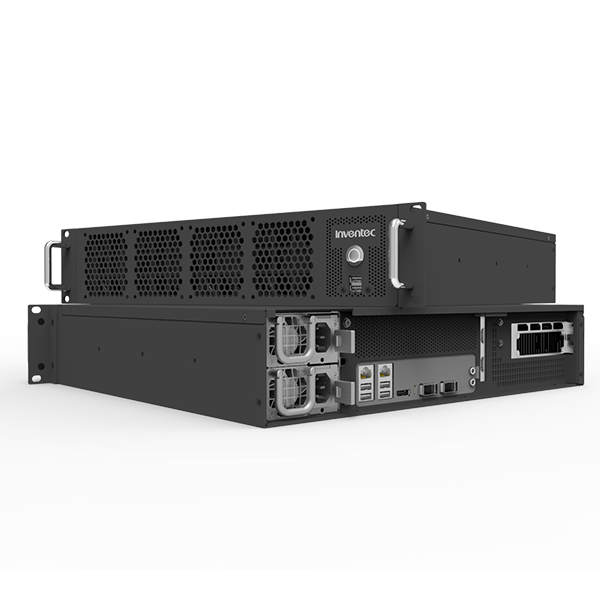

| Atlas Edge AI Server | |
|---|---|
| GPU | Integrated GPU : 2560-core NVIDIA Blackwell architecture GPU with fifth-gen Tensor Cores Multi-Instance GPU with 10 TPCs Optional GPU :
|
| CPU | 14-core Arm® Neoverse®-V3AE 64-bit CPU 64 KB I-cache, 64 KB dCache 1 MB L2 cache per core 16 MB Shared System L3 Cache |
| AI PERFORMANCE | 2070 ~ 5581 TFLOPS (FP4-Sparse) |
| STORAGE | 1TB SSD |
| RAM | 128GB 256-bit LPDDR5X |
| Dimension | 2U form factor |
| I/O | 2x Gen5 PCIe (x8, x16) 1x USB3.2 Gen2 Type C 4x USB3.2 gen2 Type-A 1x FSI CAN 2x USB header 4x COM Ports 1x LPT 1x TPM 2x CAN (CAN, 1x sMCU CAN) 1x GPIO |
| DISPLAY INTERFACE | 1x VESA DisplayPort 1.4a |
| ETHERNET | 2x RJ45 (1GbE each) 2x QSFP112 (200GbE each) Supports NVIDIA ConnectX®-7 |
| Power Supply | 1000 W |
